NCC v2, P/N EXN-003
Part No. EXN-003

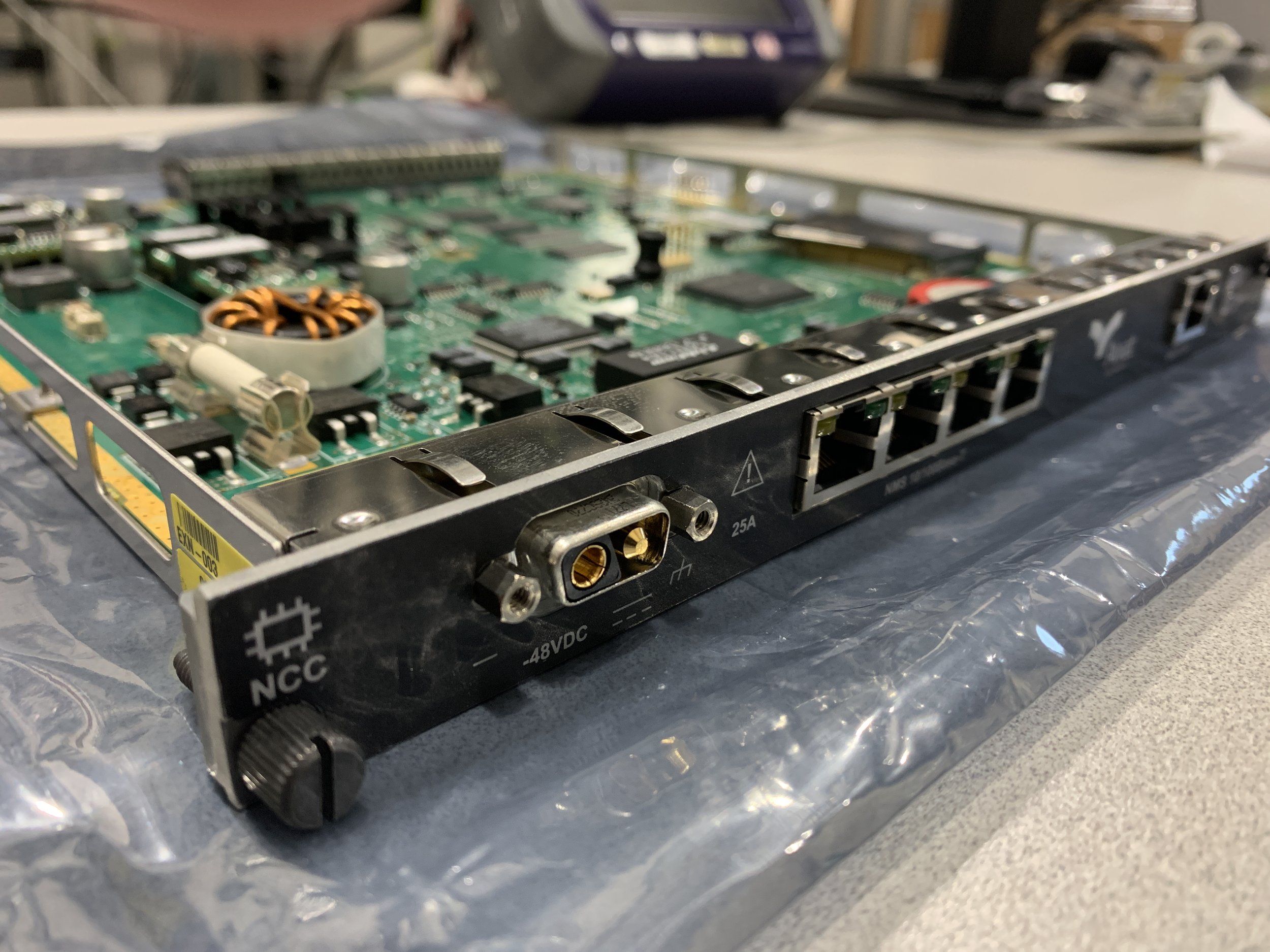

Aviat Eclipse, Node Controller Card (NCC), Serial Mgmt V2, High Output
146 W Max INUe power at 45 degrees Celsius, 125 W Max INUe power at 55 degrees Celsius
A mandatory plug-in for an INU/INUe. It performs key node management and control functions, and provides various DC rails from the -48 VDC input. It also incorporates a plug-in flash card, which holds Node configuration and license data. Power input limits are -40.5 to -60 VDC. The power connector is a D-Sub M/F 2W2. The +ve DC return pin is connected to chassis ground.
