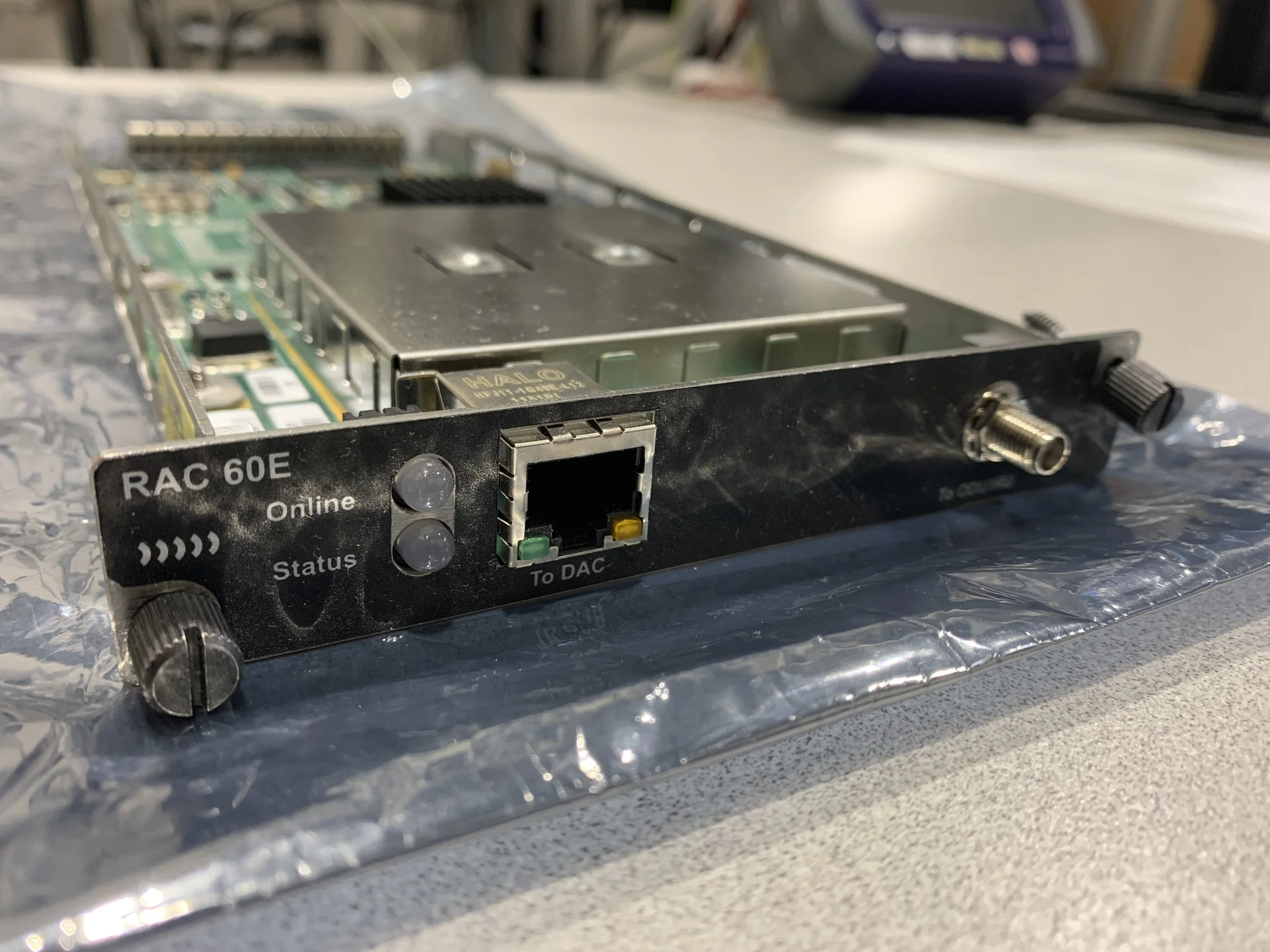

RAC 60E
Part No. EXR-660-002
Aviat, Eclipse, Radio Access Card (RAC) 60E, QPSK-256 QAM, High Gain, No XPIC, ACM
RAC 60E radio modems support DPP (Data Packet Plane) and ACM (Adaptive Coding and Modulation) options, and airlink recovered timing (ART) for high accuracy radio transport of a SyncE clock.
Features:
Four dynamically switched modulation rates: QPSK, 16 QAM, 64 QAM, 256 QAM.
Has a DPP port that enables direct routing of Ethernet traffic to a DAC GE/GE3.
Individual ACM modulations that can be set as fixed rates and complemented by fixed-only rates for TDM capacities (E1/DS1, DS3, STM1/OC3).
Channel bandwidths range from 5 to 56 MHz ETSI, and 3.5 to 80 MHz ANSI.
Air-link capacities for Ethernet, or for Ethernet+TDM, extend to 366 Mbit/s.
TDM options extend to 100xE1, 127xDS1, 4xDS3, 2xSTM1/OC3.
ART operation is designed to meet G.8262 synchronization mask requirements for SyncE clock transport.
Interfaces to an ODU 600, ODU 300hp, or to the IRU 600 Radio Frequency Units (RFUs)
